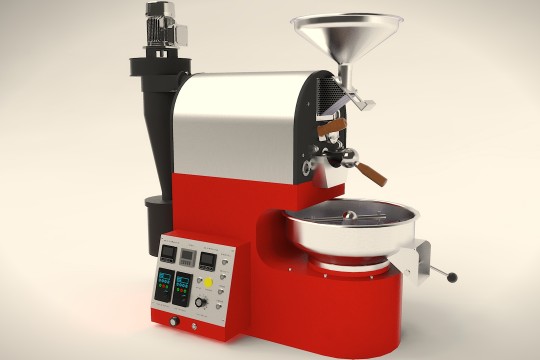

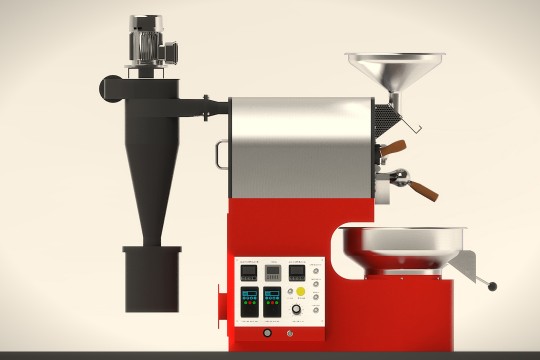

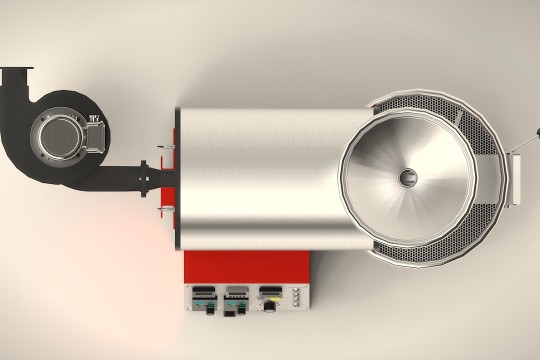

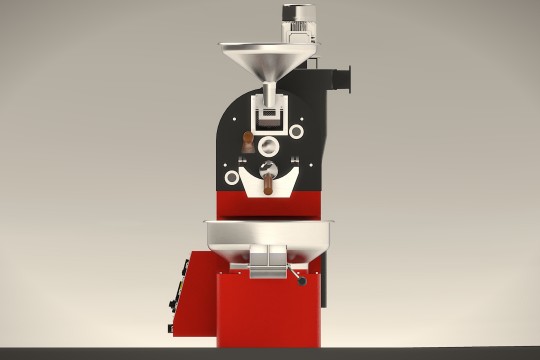

CFR1- RS



- Batch size: 0.3-1 kg
- Roasting time 8-20 min
- Burner fuel: LPG/Natural gas/Biogas
- Gas supply pressure: 20-50 mbar
- Power supply: 1x220VAC

Burner

Fully modulated with firing manager electrical ignition device and flame monitoring. 2 kW power in smooth regulation from 20-100% of power

Warranty

The Seller gives the Buyer a one-year warranty for the MR-CFR1 roasting line

Model type MP-CFR-1
Dimension (L*W*H) 1500x 700 x 1350 mm
Capacity/Batch 0.3 - 1 Kg/bacth
Roasting Time / Batch 8 - 20 minutes/batch
Roasting Roasting coffee with hot air
Electricity 220V- 1phase- 50HZ
Heating LPG gas
Gas supply pressure: 20-40 mbar
Roasting, cooling, cyclon chaff collector combined
Roasting drum 2 Layer, No shaft
Burner type Blade burner
Flame adjustment Adjust volume by control valve  (Fully modulated with firing manager electrical ignition device and flame monitoring)
Drum speed adjustment 70-100% (Adjust volume by inverter)
Hot air flow adjustmnet 50-100% (Adjust volume by inverter)
Flow air temperature indicator Indicator by timer
Bean temperature indicator Indicator by timer
Pressure gas indicator Indiactor by pressure gauge
Control Manual/ auto with PID
Sofware connection Artisan Scope and Cropster software
Body Color White, Black
Insulation Rockwool and cladding SS
Motor power
- Roasting drum P = 0.1 Kw (DMK)
- Roasting fan P = 0.1 Kw (Bonfiglioli)
- Cooling drive P = 0.09 Kw (DMK)
- Cooling Fan P = 0.37 Kw (Bonfiglioli)
